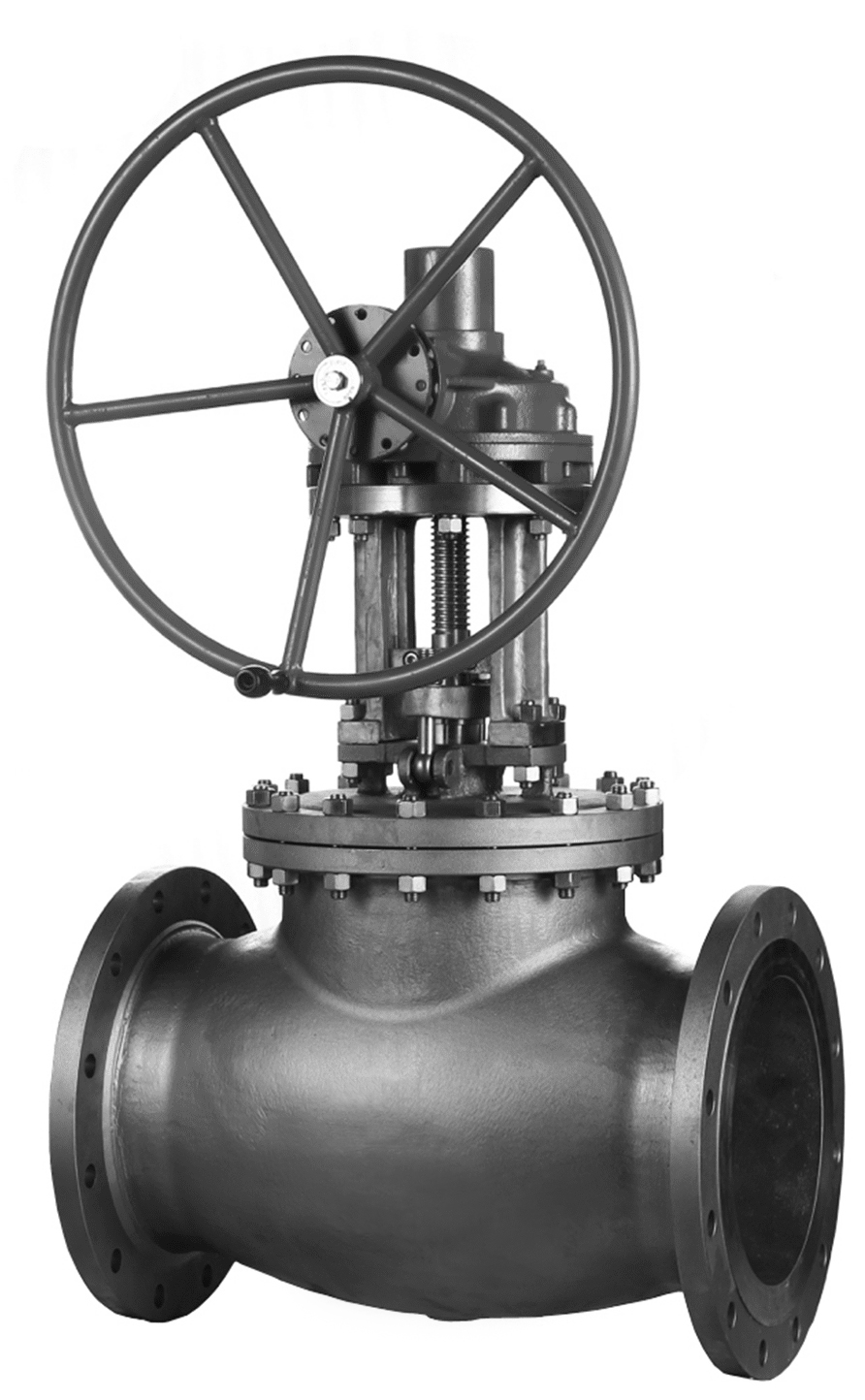

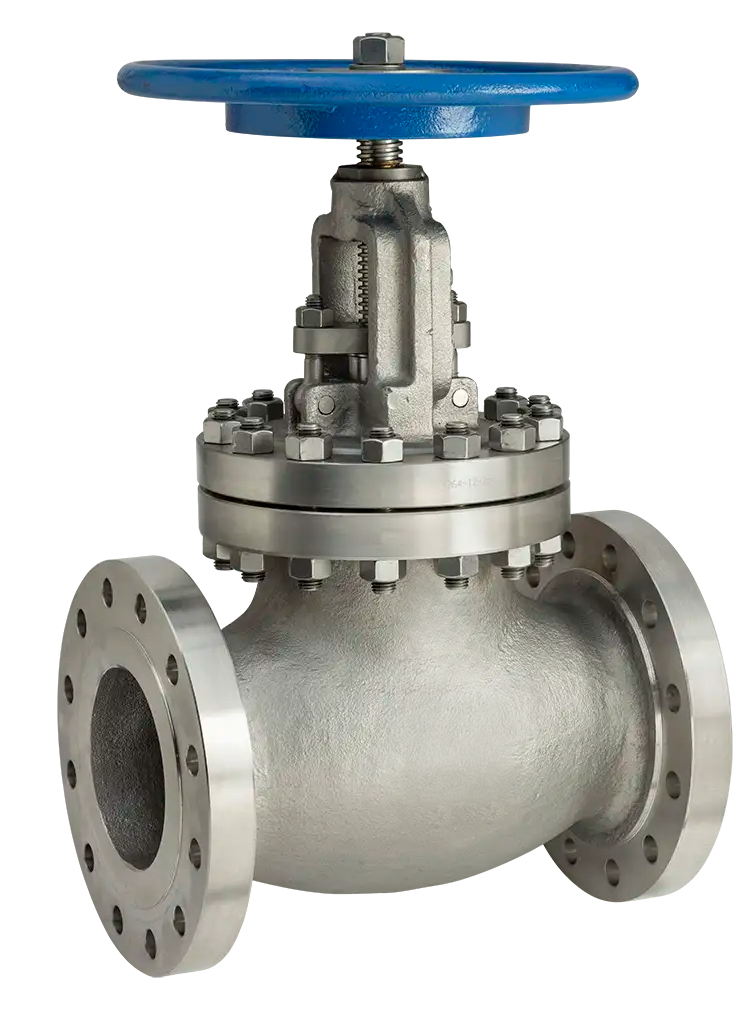

ANSI Cast Globe Valve

● موجودارسال ظرف ۱ هفته

ANSI Cast Steel Globe Valves, designed and manufactured in accordance with applicable ASME and API standards such as ASME B16.34, API 623 & BS 1873, are widely used for flow regulation and shut-off in industrial piping systems. Their cast steel construction enables a broad range of sizes, pressure classes, and body configurations, making them suitable for demanding industrial applications. With an effective disc-to-seat design, these valves provide precise throttling, reliable flow control, and dependable sealing performance in refineries, petrochemical plants, power generation facilities, and oil and gas industries.

کد کالا		Product Name	Type	Design Standard	Valve Size	Class	Bonnet	End Connection	Body Material	Disc Material	Stem Material	Country Of Origin	Manufacturer	تعداد در بسته	قیمت / بسته — ریال	در سفارش
1009A001	BS 1873 · 2" · #600 · FLGD-RF · A182 F6a + STL · A182 F6aهر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	Iran	Behsazan Jonoob Co.	1	۱٬۱۰۰٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۱۰۰٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A002	BS 1873 · 4" · #600 · FLGD-RF · A182 F6a + STL · A182 F6aهر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	Iran	Behsazan Jonoob Co.	1	۲٬۷۲۲٬۵۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۲٬۷۲۲٬۵۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A003	ASME B16.34 · 20" · #600 · FLGD-RF · A182 F6a + STL · A182 F6aهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	20"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	Iran	Behsazan Jonoob Co.	1	۵۱٬۹۷۵٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Gearbox Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۵۱٬۹۷۵٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A004	BS 1873 · 2" · #300 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۷۷۰٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۷۷۰٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A005	BS 1873 · 3" · #300 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	3"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۱٬۰۷۲٬۵۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۰۷۲٬۵۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A006	BS 1873 · 4" · #300 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۱٬۵۹۵٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۵۹۵٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A007	BS 1873 · 2" · #600 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۱٬۱۰۰٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۱۰۰٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A008	BS 1873 · 3" · #600 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	3"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۱٬۵۶۷٬۵۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۵۶۷٬۵۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A009	BS 1873 · 4" · #600 · FLGD-RF · 13% Cr + STL · AISI 410هر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	Iran	Behsazan Jonoob Co.	1	۲٬۶۱۲٬۵۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۲٬۶۱۲٬۵۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A010	API 623 · 6" · #300 · FLGD-RF · A182 F6a + STL · A182 F6aهر عدد	Globe Valve	Plug Disc Type	API 623	6"	#300	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	Iran	Behsazan Jonoob Co.	1	۳٬۰۲۵٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Gearbox Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۳٬۰۲۵٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1009A011	API 623 · 4" · #900 · FLGD-RTJ · A182 F6a + STL · A182 F6aهر عدد	Globe Valve	Plug Disc Type	API 623	4"	#900	Bolted	FLGD-RTJ	A216 WCB + STL	A182 F6a + STL	A182 F6a	Iran	Behsazan Jonoob Co.	1	۴٬۹۵۰٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 150 Test Pressure 225 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Gearbox Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 3-Layer Coating \| RAL 1003 Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۴٬۹۵۰٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
