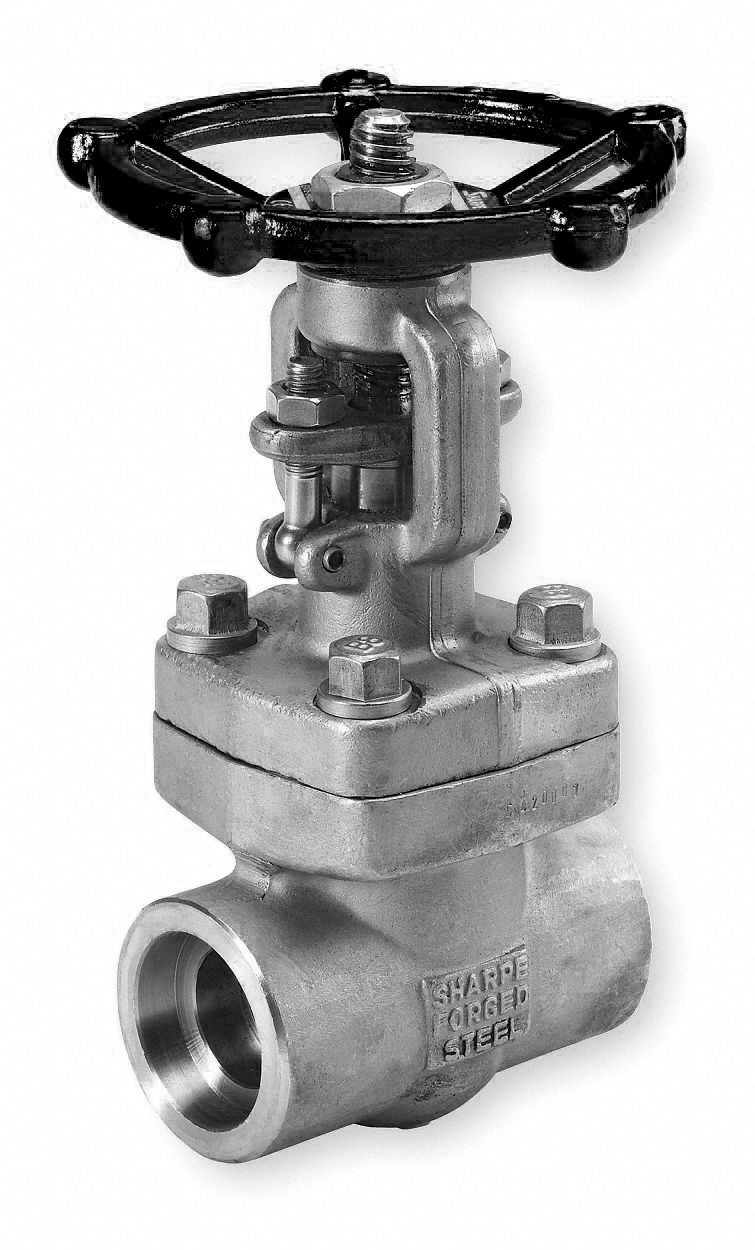

ANSI Forged Steel Gate Valves, manufactured in accordance with applicable ASME and API standards such as ASME B16.34 and API 602, are designed for reliable flow isolation in high-pressure industrial piping systems. Their forged steel construction provides excellent mechanical strength, structural integrity, and resistance to demanding operating conditions. Widely used in refineries, petrochemical plants, power generation, and process industries, they ensure dependable shut-off with minimal flow resistance and pressure drop when fully open.
۵۵ کالا
کد کالا
Product Name
Type
Design Standard
Valve Size
Class
Bonnet
End Connection
Body Material
Disc Material
Seat Material
Country Of Origin
Manufacturer
تعداد در بسته
قیمت / بسته — ریال
در سفارش
Wedge Type · API 602 · 1/2" · #800 · Bolted · SWهر عدد
Wedge Type
API 602
1/2"
#800
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۱۴۵٬۷۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱۴۵٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · SWهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۲۲۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۲۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · SW - FNPTهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
SW - FNPT
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۲۲۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۲۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · SW - FNPTهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
SW - FNPT
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۲۲۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۲۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #800 · Bolted · SWهر عدد
Wedge Type
API 602
1"
#800
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۳۰۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۰۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1/2" · #2500 · Pressure Seal Bonnet · SWهر عدد
Wedge Type
ASME B16.34
1/2"
#2500
Pressure Seal Bonnet
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۶۶۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۶۶۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 3/4" · #2500 · Pressure Seal Bonnet · SWهر عدد
Wedge Type
ASME B16.34
3/4"
#2500
Pressure Seal Bonnet
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۷۵۶٬۲۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۷۵۶٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 3/4" · #2500 · Pressure Seal Bonnet · SWهر عدد
Wedge Type
ASME B16.34
3/4"
#2500
Pressure Seal Bonnet
SW
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۷۵۶٬۲۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۷۵۶٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SWهر عدد
Wedge Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SWهر عدد
Wedge Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW - FNPTهر عدد
Wedge Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW - FNPT
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · FNPTهر عدد
Wedge Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
FNPT
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1/2"
#1500
Bolted
FNPT
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · SWهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۳۳۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۳۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · SW - FNPTهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
SW - FNPT
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۳۳۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۳۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · SWهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
SW
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۳۳۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۳۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #1500 · Bolted · SWهر عدد
Wedge Type
API 602
1"
#1500
Bolted
SW
A350 LF2
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۴۹۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-46°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۴۹۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1-1/2" · #1500 · Bolted · SWهر عدد
Wedge Type
API 602
1-1/2"
#1500
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۶۱۸٬۷۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۶۱۸٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #900 · Bolted · SWهر عدد
Wedge Type
API 602
3/4"
#900
Bolted
SW
A105N
A182 F316 + STL
A276 316 + STL
Iran
Behsazan Jonoob Co.
1
۲۶۱٬۲۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
153
Test Pressure
230
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۶۱٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #900 · Bolted · SWهر عدد
Wedge Type
API 602
1"
#900
Bolted
SW
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۳۵۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
153
Test Pressure
230
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۵۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #900 · Bolted · FLGD-RTJهر عدد
Wedge Type
API 602
1"
#900
Bolted
FLGD-RTJ
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۶۶۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
153
Test Pressure
230
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۶۶۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #600 · Bolted · FLGD-RFهر عدد
Wedge Type
API 602
1"
#600
Bolted
FLGD-RF
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۴۹۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۴۹۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 2" · #600 · Bolted · FLGD-RFهر عدد
Wedge Type
API 602
2"
#600
Bolted
FLGD-RF
A105N
A182 F6a + STL
A276 410 + STL
Iran
Behsazan Jonoob Co.
1
۸۶۹٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۸۶۹٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
1/2"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۲۴۲٬۰۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
2.2
Weight Unit
kg
۲۴۲٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
1/2"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۲۴۲٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
1.6
Weight Unit
kg
۲۴۲٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #800 · جوشی · FNPTهر عدد
Wedge Type
API 602
1/2"
#800
جوشی
FNPT
A350 LF2
A182 F6a
A182 F6a
Italy
OMB
1
۲۸۸٬۷۵۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
2.2
Weight Unit
kg
۲۸۸٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #800 · جوشی · FNPTهر عدد
Wedge Type
API 602
1/2"
#800
جوشی
FNPT
A105N
A182 F316
A182 F316
Italy
OMB
1
۲۴۲٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F316
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
1.6
Weight Unit
kg
۲۴۲٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۳۰۵٬۲۵۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
3.5
Weight Unit
kg
۳۰۵٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · جوشی · FNPTهر عدد
Wedge Type
API 602
3/4"
#800
جوشی
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۳۰۵٬۲۵۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
3.5
Weight Unit
kg
۳۰۵٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #800 · Bolted · SWهر عدد
Wedge Type
API 602
1"
#800
Bolted
SW
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۴۹۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
5
Weight Unit
kg
۴۹۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1-1/4" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
1-1/4"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۷۴۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
6.3
Weight Unit
kg
۷۴۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1-1/2" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
1-1/2"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۷۹۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
8
Weight Unit
kg
۷۹۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 2" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
2"
#800
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۱٬۸۸۶٬۵۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
16
Weight Unit
kg
۱٬۸۸۶٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1/2"
#1500
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
3.8
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1/2"
#1500
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
2.2
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #1500 · جوشی · FNPTهر عدد
Wedge Type
API 602
1/2"
#1500
جوشی
FNPT
A350 LF2
A182 F6a
A182 F6a
Italy
OMB
1
۳۸۷٬۷۵۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
3.8
Weight Unit
kg
۳۸۷٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #1500 · جوشی · FNPTهر عدد
Wedge Type
API 602
1/2"
#1500
جوشی
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
2.2
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #1500 · جوشی · SWهر عدد
Wedge Type
API 602
1"
#1500
جوشی
SW
A350 LF2
A182 F6a
A182 F6a
Italy
OMB
1
۶۶۵٬۵۰۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
6.8
Weight Unit
kg
۶۶۵٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1-1/4" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1-1/4"
#1500
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۸۲۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
6.8
Weight Unit
kg
۸۲۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1-1/2" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1-1/2"
#1500
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
9.5
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 2" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
2"
#1500
Bolted
FNPT
A105N
A182 F6a
A182 F6a
Italy
OMB
1
۱٬۹۹۳٬۷۵۰٬۰۰۰
—
جزئیات
Bore
FB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Italy
Manufacturer
OMB
Application
Oil & Gas Industries Isolation Service
Weight
22.5
Weight Unit
kg
۱٬۹۹۳٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · SWهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
SW
A350 LF2
SS316 + St6
SS316 + St6
Iran
Behsazan Jonoob Co.
1
۲۳۳٬۷۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
SS316
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-46°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۳۳٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · SW - FNPTهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
SW - FNPT
A350 LF2
SS316 + St6
SS316 + St6
Iran
Behsazan Jonoob Co.
1
۲۳۳٬۷۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
SS316
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-46°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۳۳٬۷۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1/2" · #300 · Bolted · FLGD-RFهر عدد
Wedge Type
API 602
1/2"
#300
Bolted
FLGD-RF
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۲۴۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
50.1
Test Pressure
75
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۴۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1"
#1500
Bolted
FNPT
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۴۹۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۴۹۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
1"
#800
Bolted
FNPT
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۳۰۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۰۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
FNPT
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۳۳۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۳۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · FLGD-RTJهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
FLGD-RTJ
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۶۶۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
255
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۶۶۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #800 · Bolted · FNPTهر عدد
Wedge Type
API 602
3/4"
#800
Bolted
FNPT
A105N
A182 F6a + STL
A182 F6a + STL
Iran
Behsazan Jonoob Co.
1
۲۲۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲۲۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 1" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
1"
#1500
Bolted
FNPT
A182 F316L
A182 F316L + STL
A182 F316L
Iran
Behsazan Jonoob Co.
1
۹۶۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
250
Test Pressure
375
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
-
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۶۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · API 602 · 3/4" · #1500 · Bolted · FNPTهر عدد
Wedge Type
API 602
3/4"
#1500
Bolted
FNPT
A182 F316L
A182 F316L + STL
A182 F316L
Iran
Behsazan Jonoob Co.
1
۷۱۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
A182 F6a
Design Pressure
250
Test Pressure
375
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
-
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۷۱۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 3/4" · #2500 · Pressure Seal Bonnet · SW + NIPPLEهر عدد
Wedge Type
ASME B16.34
3/4"
#2500
Pressure Seal Bonnet
SW + NIPPLE
A105N
AISI 410 + STL
AISI 410 + STL
Iran
Behsazan Jonoob Co.
1
۸۱۱٬۲۵۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
AISI 410
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۸۱۱٬۲۵۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Wedge Type · ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW + NIPPLEهر عدد
Wedge Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW + NIPPLE
A105N
AISI 410 + STL
AISI 410 + STL
Iran
Behsazan Jonoob Co.
1
۹۶۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Stem Material
AISI 410
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹۶۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Slab Type · ASME B16.34 · 4" · #2500 · Bolted Bonnet · FLGD-RTJهر عدد
Slab Type
ASME B16.34
4"
#2500
Bolted Bonnet
FLGD-RTJ
AISI 4130 + INCOENL 625
AISI 410 + TC + INCONEL 625
AISI 410 + TC + INCONEL 625
Iran
Behsazan Jonoob Co.
1
۳۷٬۹۵۰٬۰۰۰٬۰۰۰
—
بدون تصویر
جزئیات
Bore
FB
Stem Material
INCONEL 718
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Gearbox
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۷٬۹۵۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
Slab Type · ASME B16.34 · 6" · #2500 · Bolted Bonnet · FLGD-RTJهر عدد
Slab Type
ASME B16.34
6"
#2500
Bolted Bonnet
FLGD-RTJ
AISI 4130
AISI 410 + TC
AISI 410 + TC
Iran
Behsazan Jonoob Co.
1
۳۴٬۶۵۰٬۰۰۰٬۰۰۰
—
بدون تصویر
جزئیات
Bore
FB
Stem Material
AISI 410 + QPQ
Design Pressure
426
Test Pressure
638
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Gearbox
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
