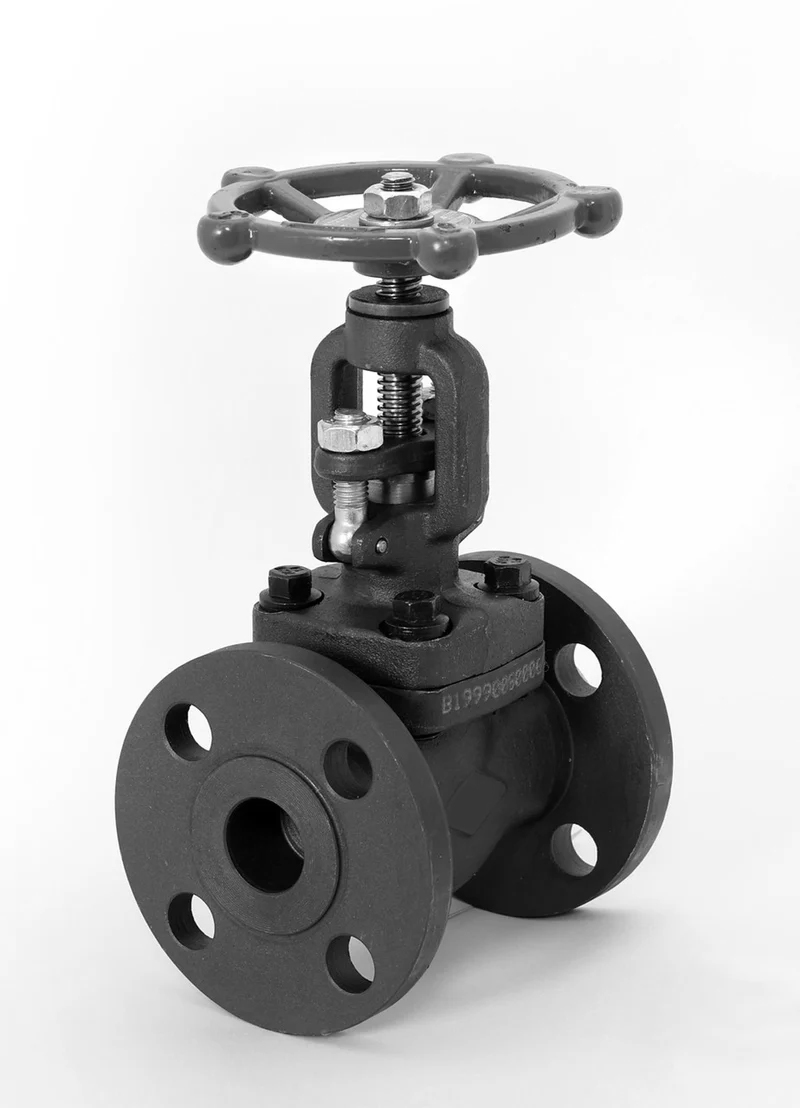

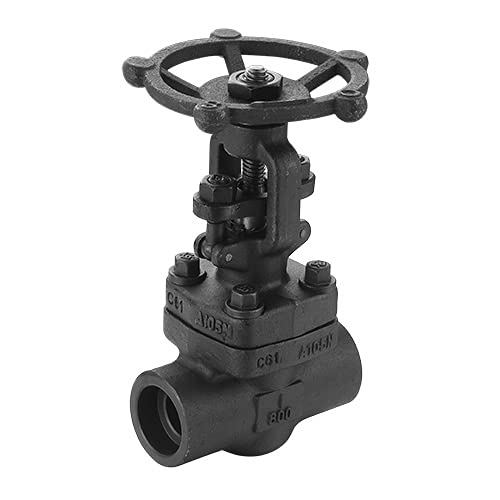

ANSI Forged Steel Globe Valves, manufactured in accordance with applicable ASME and API standards such as ASME B16.34 and API 602, are designed for precise flow regulation and reliable shut-off in high-pressure industrial piping systems. Their forged steel construction provides excellent mechanical strength, structural integrity, and resistance to demanding operating conditions. Featuring a precision-engineered disc and seat arrangement, they deliver accurate throttling performance and dependable flow control in refineries, petrochemical plants, power generation facilities, and oil and gas applications.
۱۳ کالا
کد کالا
Product Name
Type
Design Standard
Valve Size
Class
Bonnet
End Connection
Body Material
Disc Material
Stem Material
Country Of Origin
Manufacturer
تعداد در بسته
قیمت / بسته — ریال
در سفارش
API 602 · 1/2" · #1500 · Bolted · SW · A105N + STLهر عدد
Plug Disc Type
API 602
1/2"
#1500
Bolted
SW
A105N + STL
A276 410 + STL
A182 F6a
Iran
Behsazan Jonoob Co.
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
255.1
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1/2" · #1500 · Bolted · SW · A105N + STLهر عدد
Plug Disc Type
API 602
1/2"
#1500
Bolted
SW
A105N + STL
A276 316 + STL
A182 F316
Iran
Behsazan Jonoob Co.
1
۳۲۴٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
255.1
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۳۲۴٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1" · #1500 · Bolted · SW · A105N + STLهر عدد
Plug Disc Type
API 602
1"
#1500
Bolted
SW
A105N + STL
A276 316 + STL
A182 F316
Iran
Behsazan Jonoob Co.
1
۵۵۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
255.1
Test Pressure
383
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۵۵۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته

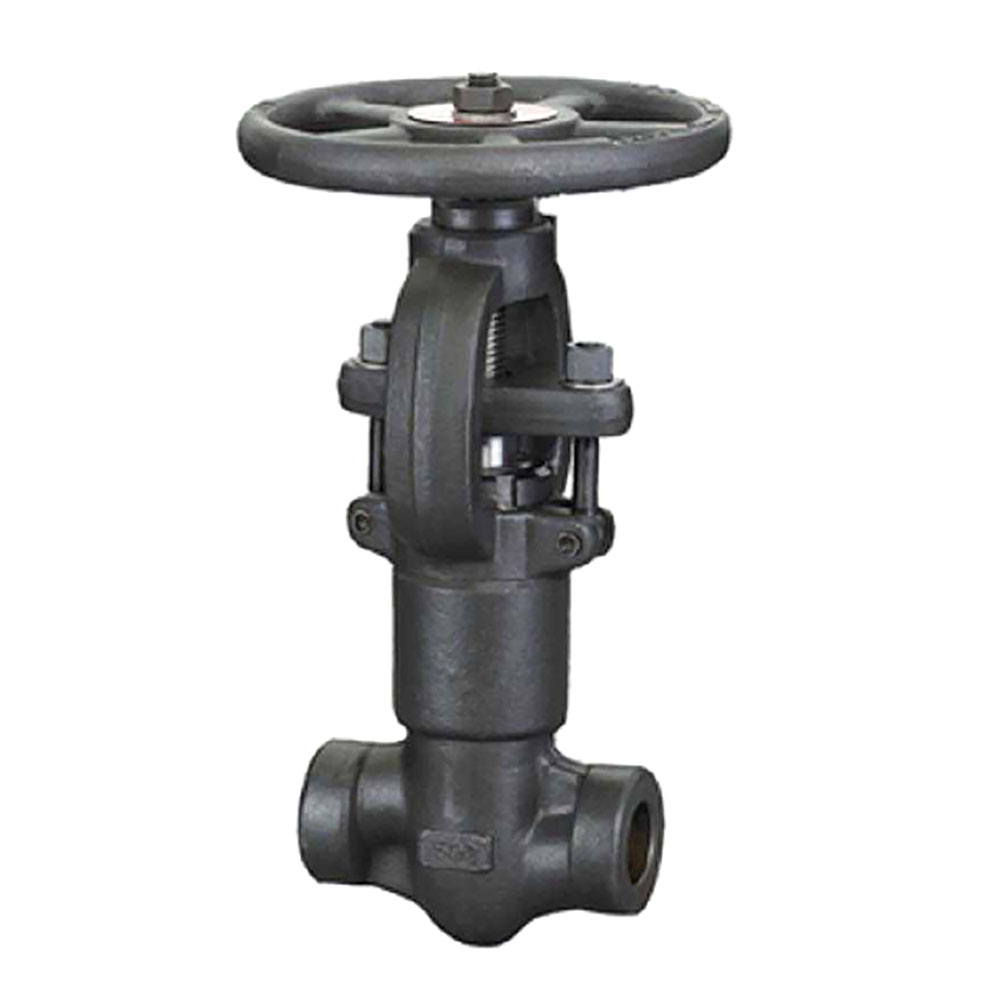

ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد
Plug Disc Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW
A105N + STL
A276 410 + STL
A182 F6a
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
425.1
Test Pressure
637.6
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد
Plug Disc Type
ASME B16.34
1"
#2500
Pressure Seal Bonnet
SW
A105N + STL
A276 316 + STL
A182 F316
Iran
Behsazan Jonoob Co.
1
۹۰۷٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
425.1
Test Pressure
637.6
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۹۰۷٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
ASME B16.34 · 1/2" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد
Plug Disc Type
ASME B16.34
1/2"
#2500
Pressure Seal Bonnet
SW
A105N + STL
A276 410 + STL
A182 F6a
Iran
Behsazan Jonoob Co.
1
۶۶۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
425.1
Test Pressure
637.6
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۶۶۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
ASME B16.34 · 1/2" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد
Plug Disc Type
ASME B16.34
1/2"
#2500
Pressure Seal Bonnet
SW
A105N + STL
A276 316 + STL
A182 F316
Iran
Behsazan Jonoob Co.
1
۶۶۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
425.1
Test Pressure
637.6
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۶۶۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 2" · #600 · Bolted · FLGD-RF · A105N + STLهر عدد
Plug Disc Type
API 602
2"
#600
Bolted
FLGD-RF
A105N + STL
A276 316 + STL
A182 F316
Iran
Behsazan Jonoob Co.
1
۸۶۹٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۸۶۹٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1" · #800 · Bolted · SW · A105N + STLهر عدد
Plug Disc Type
API 602
1"
#800
Bolted
SW
A105N + STL
A182 F6a + STL
A182 F6a
Iran
Behsazan Jonoob Co.
1
۳۰۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
140
Test Pressure
210
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۳۰۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1-1/2" · #800 · Bolted · SW · A350 LF3هر عدد
Plug Disc Type
API 602
1-1/2"
#800
Bolted
SW
A350 LF3
SS316 + STL
SS316 + STL
Iran
Behsazan Jonoob Co.
1
۸۲۵٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
137
Test Pressure
206
Pressure Unit
Bar
Working Temperature
-101°C to 300°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۸۲۵٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1-1/2" · #800 · Bolted · SW · A350 LF2هر عدد
Plug Disc Type
API 602
1-1/2"
#800
Bolted
SW
A350 LF2
SS316 + STL
SS316 + STL
Iran
Behsazan Jonoob Co.
1
۴۴۰٬۰۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
137
Test Pressure
206
Pressure Unit
Bar
Working Temperature
-46°C to 300°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۴۴۰٬۰۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1" · #800 · Bolted · SW + NIPPLE · A350 LF2هر عدد
Plug Disc Type
API 602
1"
#800
Bolted
SW + NIPPLE
A350 LF2
SS316 + STL
SS316 + STL
Iran
Behsazan Jonoob Co.
1
۳۰۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
137
Test Pressure
206
Pressure Unit
Bar
Working Temperature
-46°C to 300°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Low Temperature Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
Zinc-Rich Epoxy primer (RAL 7000)
Custom Painting
Available upon customer request
Country Of Origin
Iran
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Throttling Service
Weight Unit
kg
۳۰۲٬۵۰۰٬۰۰۰ ریال / بسته
هر عدد
● موجود — ارسال ظرف ۱ هفته
API 602 · 1" · #1500 · Bolted · SW · A182 F316Lهر عدد
Plug Disc Type
API 602
1"
#1500
Bolted
SW
A182 F316L
A182 F316L + STL
A182 F316L
Iran
Behsazan Jonoob Co.
1
۹۶۲٬۵۰۰٬۰۰۰
—
جزئیات
Bore
RB
Design Pressure
250
Test Pressure
375
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
Throttling
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
